Details
Workhorse Radiator - Fits Models:
W22, W24, SB2 Chassis - Years: 2005 to 2010
W62 Chassis - Years: 2010 to 2012
High Quality OE Style Radiator
w/ Plastic Tanks / Aluminum Core
WITH 2 Oil Coolers & 3/4" Heater Return
CORE HEIGHT: 28 1/4"
CORE WIDTH: 20 3/8"
DEPTH: 2"
INLET: (2) 1 5/16" Upper Left (One on Grill Side)
OUTLET: 1 7/8" Lower Right
OIL COOLER (1): 11 1/2" Centers - 5/8" Quick Connect
OIL COOLER (2): 18" Centers - 5/8" Quick Connect
2-Year Limited Warranty*
W22, W24, SB2 Chassis - Years: 2005 to 2010
W62 Chassis - Years: 2010 to 2012
High Quality OE Style Radiator
w/ Plastic Tanks / Aluminum Core
WITH 2 Oil Coolers & 3/4" Heater Return
CORE HEIGHT: 28 1/4"
CORE WIDTH: 20 3/8"
DEPTH: 2"
INLET: (2) 1 5/16" Upper Left (One on Grill Side)
OUTLET: 1 7/8" Lower Right
OIL COOLER (1): 11 1/2" Centers - 5/8" Quick Connect
OIL COOLER (2): 18" Centers - 5/8" Quick Connect
2-Year Limited Warranty*
Notes:

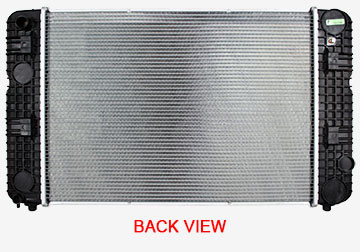

This radiator also has an extra inlet and sensor port on the grill side - see alternate photo above.
For same radiator *With Frame*, see part no: SC-238897
OEM Part Numbers:
1102675, 1003773, W0013761, 605RA675, 1050270, W0013762, W0009851, W8003550, W8003551, XX9912, 1102467
Best Quality & Price - Satisfaction Guarantee
At Superior, we build and supply only the highest quality radiators with heavy duty components for superior quality, maximum heat rejection and long life durability.
We want your business and will go the distance to prove that our radiators and service are superior to others in the industry.
Please call us at 1-800-578-8416 and we will do our best to beat or match another price or quote you find.
Or, fill out the form below and we will contact you.
