Details

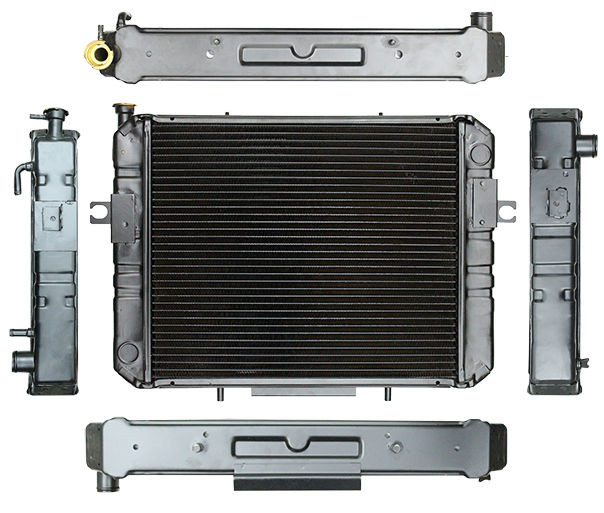

Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
OVERALL HEIGHT: 24 3/4" (27 3/4" w/ brackets)
OVERALL WIDTH: 17 3/4" 19 1/4" w/ Mount Studs)
CORE HEIGHT: 19 5/8"
CORE WIDTH: 17 1/4"
DEPTH: 2 3/8"
ROWS: 4
INLET: 1 3/8"
OUTLET: 1 3/8"
FINS PER INCH: 11 - V Fin
FILL NECK: 32mm
OIL COOLER: 1/2" Barb on 11" Centers
PIN MOUNTS: Upper 10 1/4" Ctrs, Lower 11" Ctrs
RADIATOR CAP: Use RW0021-6
12-Month Warranty*
with Brass Tanks / Copper Core
OVERALL HEIGHT: 24 3/4" (27 3/4" w/ brackets)
OVERALL WIDTH: 17 3/4" 19 1/4" w/ Mount Studs)
CORE HEIGHT: 19 5/8"
CORE WIDTH: 17 1/4"
DEPTH: 2 3/8"
ROWS: 4
INLET: 1 3/8"
OUTLET: 1 3/8"
FINS PER INCH: 11 - V Fin
FILL NECK: 32mm
OIL COOLER: 1/2" Barb on 11" Centers
PIN MOUNTS: Upper 10 1/4" Ctrs, Lower 11" Ctrs
RADIATOR CAP: Use RW0021-6
12-Month Warranty*
OEM Part Numbers: 16410U215071, 16410U213071, 6FGCU20GM4181, 6FGU304Y
Notes:
Similar to part no: SC-246066, but this radiator does not have top mount tabs or shroud clip on the grill side.
Supersedes part no: SC-246064
