Radiator for TUG Aircraft Tow Tractor

Submit a Review for this product


Availability: In stock

Quick Overview

Introducing Industrial Tough - Complete Industrial Radiators (CIR)
Application: TUG Aircraft Tow Tractor Radiator
See details below for specs and measurements.
Radiator for TUG Aircraft Tow Tractor

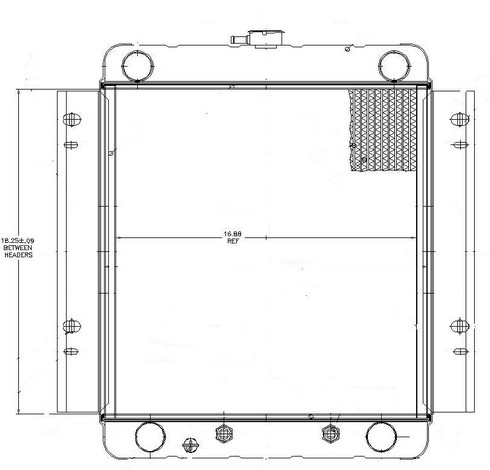

Zoom or Click to Enlarge


TUG - Airport Tow Tractor- Complete Radiator

All-Metal Radiator (Solder On Tanks)

Core Dimensions
(between headers, core surface ONLY)
Radiator Overall Dimensions
(Includes Tanks & Brackets)
Core Width Core Depth Rows FPI Overall Height Overall Width Inlet
Outlet Connection Remarks
18 1/4" 16 7/8" 2 1/4" 3 14     1 5/8"
1 5/8"
1 5/8"
1 5/8"
6" Oil
MODEL   Jobber Price DESCRIPTION - Notes
Includes a Kit of 2 expansion plugs to plug the unused hose connections.
Comes without center brackets.
Fits the common standard 18 x 20 core model. Our brackets are wider to make up the difference.

Note: dimensions, drawings and illustrations are for reference purposes only.
Superior Radiators™ are not OE parts, but are replacement parts for various manufacturers.
Replacement radiator measurements may vary slightly from OE and other aftermarket manufacturers.
