Race Pro Radiator - Double Pass w/ Threaded Inlet

Submit a Review for this product


Availability: In stock

Quick Overview

Superior Part No: SC-204124
Race Pro Radiator - Double Pass w/ Threaded Inlet
Zoom or Click to Enlarge

More Views

  • Race Pro Radiator - 204124
  • Race Pro Radiator - 204124

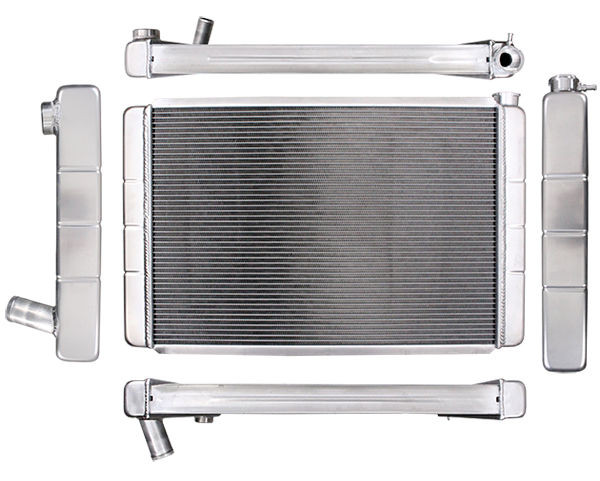

Race Pro Radiator - 31" x 19" Overall
GM Double Pass with Threaded Inlet

Machined Billet Aluminum
SAE Compliant Filler Neck

CORE HEIGHT: 26 1/4"
CORE WIDTH: 18 1/8"
DEPTH: 2 1/4"
ROWS: 2 - 1" Tubes
INLET: 1 5/8 - 12UNJ Female Fitting
OUTLET: 1 3/4

12-Month Warranty*
Superior Radiators - Truck Tough

For inlet options see:
1 5/8"-12UNJ male thread to AN16 Z17546
1 5/8"-12UNJ male thread to AN20 Z17547
1 5/8"-12UNJ male thread to 1 1/2" hose bead Z17548
1 5/8"-12UNJ male thread to 1 1/4" hose bead Z17549
1 5/8"-12UNJ male thread to 1 3/4" hose bead Z17553
1 5/8"-12UNJ male thread to 1 5/8" weldable bung Z17554

Recommended Standard Electric Fan Shroud: Z40003
Recommended High CFM Electric Fan Shroud: Z40076
Recommended Brushless Fan Shroud: Z40133
Recommended Hurricane Engine Driven Fan Shroud: Z40023

For ultimate performance, see these high pressure race radiotor caps:
20 LB psi - part no: Z19200
24 LB psi - part no: Z19201
28 LB psi - part no: Z19202
