Details

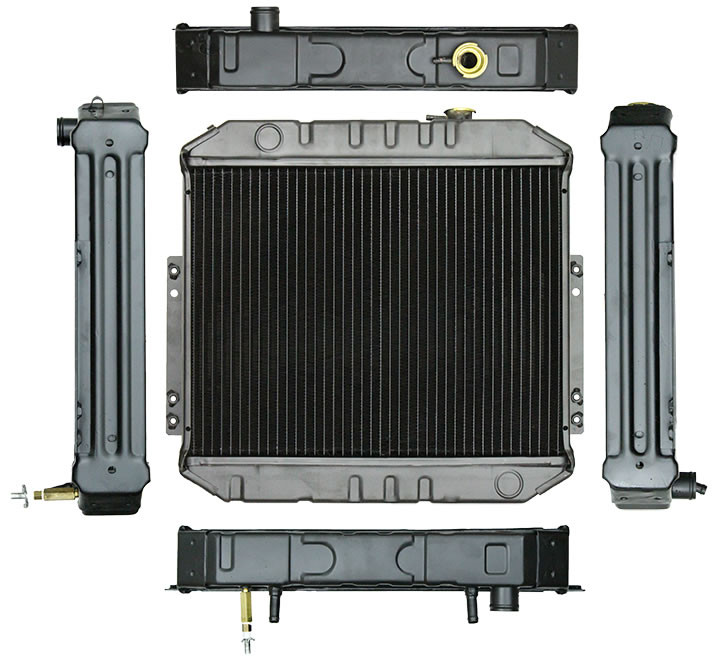

Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
WITH Oil Cooler
OVERALL HEIGHT: 19 1/2"
OVERALL WIDTH: 19 3/4" (22 1/8" over brackets)
CORE HEIGHT: 14 1/2"
CORE WIDTH: 19 1/4"
DEPTH: 2"
ROWS: 3
INLET: 1 3/8"
OUTLET: 1 3/8"
FINS PER INCH: 12 - V Fin
FILL NECK: 32mm
OIL COOLER: 1/2" Barb on 9 3/4" Centers
RADIATOR CAP: Use RW0021-6
Click Here for description of different style cores.
12-Month Warranty*
with Brass Tanks / Copper Core
WITH Oil Cooler
OVERALL HEIGHT: 19 1/2"
OVERALL WIDTH: 19 3/4" (22 1/8" over brackets)
CORE HEIGHT: 14 1/2"
CORE WIDTH: 19 1/4"
DEPTH: 2"
ROWS: 3
INLET: 1 3/8"
OUTLET: 1 3/8"
FINS PER INCH: 12 - V Fin
FILL NECK: 32mm
OIL COOLER: 1/2" Barb on 9 3/4" Centers
RADIATOR CAP: Use RW0021-6
Click Here for description of different style cores.
12-Month Warranty*
OEM Part Numbers: 2146090H15, 2146090H15T, KAH01A15V
