Details
Mack / Volvo Truck Radiator - Fits:
Mack - CH & Granite Series
Volvo - VHD Series
Years: 2006 to 2010
OE Style Radiator with Plastic Tanks / Aluminum Core
WITH Oil Cooler, WITH CrankBox, WITHOUT Frame
CORE HEIGHT: 39 3/8"
CORE WIDTH: 34 3/16"
DEPTH: 2 1/16"
INLET: 2 1/2" - Upper Left
OUTLET: 2 1/2" - Lower Right
OIL COOLER: Yes
CRANK BOX: Yes
2-Year Limited Warranty*
Mack - CH & Granite Series
Volvo - VHD Series
Years: 2006 to 2010
OE Style Radiator with Plastic Tanks / Aluminum Core
WITH Oil Cooler, WITH CrankBox, WITHOUT Frame
CORE HEIGHT: 39 3/8"
CORE WIDTH: 34 3/16"
DEPTH: 2 1/16"
INLET: 2 1/2" - Upper Left
OUTLET: 2 1/2" - Lower Right
OIL COOLER: Yes
CRANK BOX: Yes
2-Year Limited Warranty*
OEM Part Numbers:
2MF561M, 21095130, 376761661, R4583001, N6415100, N6414100, 21000732, 21000733, 21095132, 85112702, 21504542, 21504554, 85125541, 21593035, 21593041, 8MK376761661, N6414, N6415, R4583, S5744, S5588, S5750, Y8076, S7326, S5588102, 23017339, 376700201, 85148413, MAC24, HDC010194, 730026, 730026PT, 730026PTR, 437228P
Notes:
**Has horizontal mount brackets on bottom tank.**
Must compare to SC-238806 with diagonal bottom mount brackets.

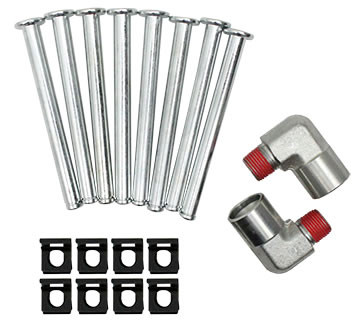

See alternate photo above for included components.
For Radiator WITH Frame, see part no: SC-238860
For similar Radiator WITHOUT CrankBox, see part no: SC-239048 & SC-238680
**Please Note bottom mount bracket information on each**
Click Here to read an important document regarding surge tank leaks versus real radiator leaks.
