Details

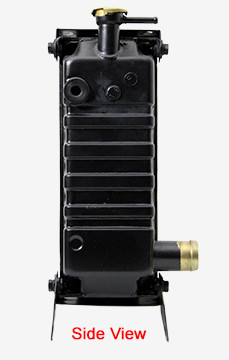

Radiator for Hyster/Yale Forklift

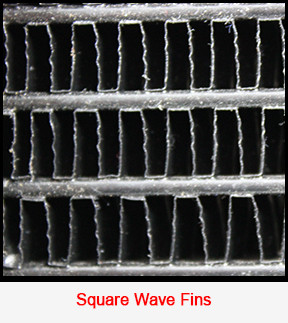

**Square Wave Core**
Click Here for description of different style cores.
Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
OEM Side Panels Included
OVERALL HEIGHT: 24"
OVERALL WIDTH: 13"
OVERALL DEPTH: 5"
CORE HEIGHT: 18 7/8"
CORE WIDTH: 11 5/8"
COREDEPTH: 3 1/8"
ROWS: 5
INLET: 1 3/8" - Upper Right
OUTLET: 1 3/8" - Lower Left
OIL COOLER: No
FINS PER INCH: 8 - Square Wave
FILL NECK: 32mm
12-Month Warranty*
**Square Wave Core**
Click Here for description of different style cores.
Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
OEM Side Panels Included
OVERALL HEIGHT: 24"
OVERALL WIDTH: 13"
OVERALL DEPTH: 5"
CORE HEIGHT: 18 7/8"
CORE WIDTH: 11 5/8"
COREDEPTH: 3 1/8"
ROWS: 5
INLET: 1 3/8" - Upper Right
OUTLET: 1 3/8" - Lower Left
OIL COOLER: No
FINS PER INCH: 8 - Square Wave
FILL NECK: 32mm
12-Month Warranty*
Notes:
For Flat Fin "Cotton" Core, see part number SC-246309
OEM Part Numbers: 3089232, 580061780, 2074789, 1590917, 580057495, 582003828, 582016194
Best Quality & Price - Satisfaction Guarantee
At Superior, we build and supply only the highest quality radiators with heavy duty components for superior quality, maximum heat rejection and long life durability.
We want your business and will go the distance to prove that our radiators and service are superior to others in the industry.
Please call us at 1-800-578-8416 and we will do our best to beat or match another price or quote you find.
