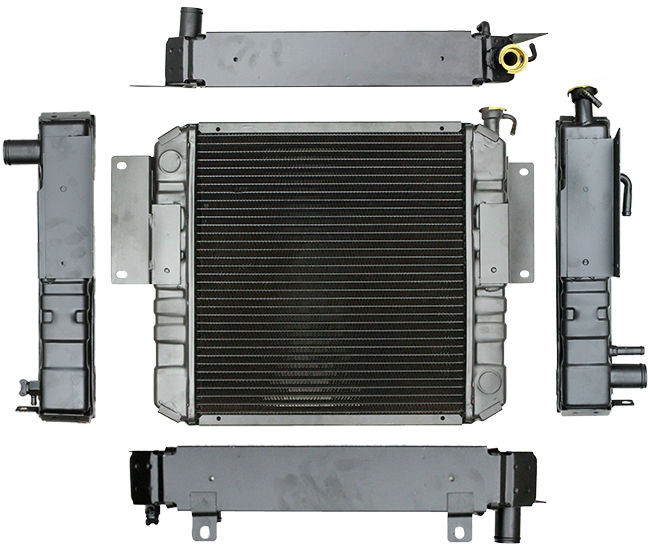

Hyster/Yale Forklift Radiator
with Oil Cooler (9 3/4" Centers)
All Metal Radiator with Brass Tanks / Copper Core
OVERALL LENGTH: 20 3/4" (25 5/8" w/ Brackets)
OVERALL WIDTH: 17 5/8"
CORE HEIGHT: 15 3/4"
CORE WIDTH: 17"
DEPTH: 2"
INLET: 1 3/8"
OUTLET: 1 3/8"
FINS PER INCH: 10 - V Fin
FILL NECK: 32mm
OIL COOLER: 1/2" Barb on 9 3/4" Centers
MOUNTING POINTS: 12 5/8" Centers
OEM Part Numbers: 913827600
12-Month Warranty*
with Oil Cooler (9 3/4" Centers)
All Metal Radiator with Brass Tanks / Copper Core
OVERALL LENGTH: 20 3/4" (25 5/8" w/ Brackets)
OVERALL WIDTH: 17 5/8"
CORE HEIGHT: 15 3/4"
CORE WIDTH: 17"
DEPTH: 2"
INLET: 1 3/8"
OUTLET: 1 3/8"
FINS PER INCH: 10 - V Fin
FILL NECK: 32mm
OIL COOLER: 1/2" Barb on 9 3/4" Centers
MOUNTING POINTS: 12 5/8" Centers
OEM Part Numbers: 913827600
12-Month Warranty*
Notes:
Click Here for description of different style cores.
Best Quality & Price - Satisfaction Guarantee
At Superior, we build and supply only the highest quality radiators with heavy duty components for superior quality, maximum heat rejection and long life durability.
We want your business and will go the distance to prove that our radiators and service are superior to others in the industry.
Please call us at 1-800-578-8416 and we will do our best to beat or match another price or quote you find.
Or, fill out the form below and we will contact you.
