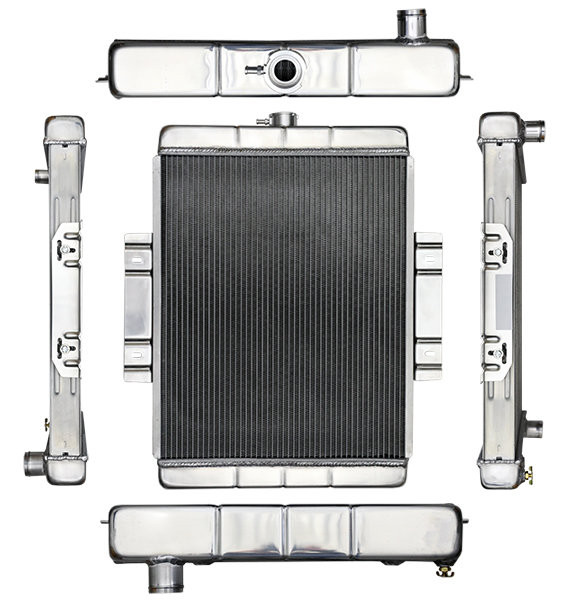

All Aluminum Hot Rod Radiator
Fits: Medium Nose Vehicles with a Tall Downflow Radiator
Years: 1930's, 40's & 50's
WITH Transmission Oil Cooler
• 7 Plate Aluminum High Performance Transmission Cooler
• Machined Billet Aluminum SAE Compliant Filler Neck
• Typical GM hose locations
• Weldable Mounting Bracket included
OVERALL HEIGHT: 27"
OVERALL WIDTH: 19 3/4"
OVERALL DEPTH: 3 1/8"
CORE HEIGHT: 22 1/2"
CORE WIDTH: 18 1/8"
DEPTH: 2 1/4"
ROWS: 2 - 1" Tubes
INLET: 1 1/2" - Left
OUTLET: 1 3/4" - Right
TOC: 5/16" - Inverted Flare
EOC: No
12-Month Warranty*
Fits: Medium Nose Vehicles with a Tall Downflow Radiator
Years: 1930's, 40's & 50's
WITH Transmission Oil Cooler
• 7 Plate Aluminum High Performance Transmission Cooler
• Machined Billet Aluminum SAE Compliant Filler Neck
• Typical GM hose locations
• Weldable Mounting Bracket included
OVERALL HEIGHT: 27"
OVERALL WIDTH: 19 3/4"
OVERALL DEPTH: 3 1/8"
CORE HEIGHT: 22 1/2"
CORE WIDTH: 18 1/8"
DEPTH: 2 1/4"
ROWS: 2 - 1" Tubes
INLET: 1 1/2" - Left
OUTLET: 1 3/4" - Right
TOC: 5/16" - Inverted Flare
EOC: No
12-Month Warranty*
Notes:
Recommended Dual High CFM 11" Electric Fan & Shroud - see part no: Z40095
Recommended regular Dual 11" Electric Fan & Shroud- - see part no: Z40066
