Details

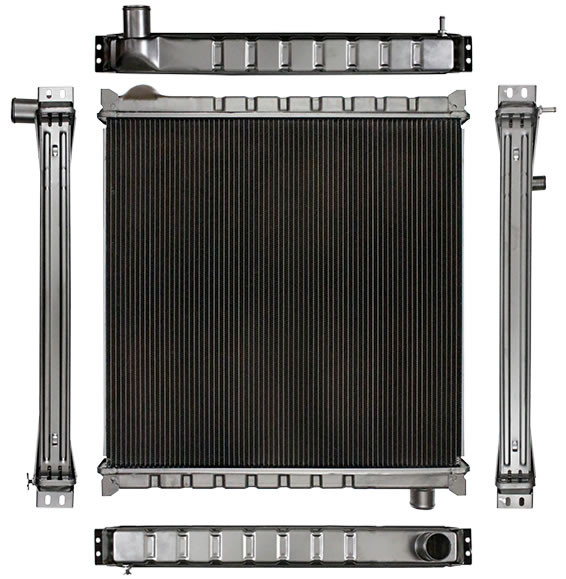

Ford / Sterling Truck Radiator - Fits Models:
B500, B600, B700, B800, F600, F700, F800
Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
Outlet points straight down from bottom tank
Mounting brackets (from the side) on all 4 corners
CORE HEIGHT: 26 3/4"
CORE WIDTH: 28 1/2"
DEPTH: 2 1/4"
ROWS: 3
INLET: 2" - Upper Right, 3 1/2" in
OUTLET: 2" - Bottom Left, 3 1/2" in
OIL COOLER: No
2-Year Limited Warranty*
B500, B600, B700, B800, F600, F700, F800
Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
Outlet points straight down from bottom tank
Mounting brackets (from the side) on all 4 corners
CORE HEIGHT: 26 3/4"
CORE WIDTH: 28 1/2"
DEPTH: 2 1/4"
ROWS: 3
INLET: 2" - Upper Right, 3 1/2" in
OUTLET: 2" - Bottom Left, 3 1/2" in
OIL COOLER: No
2-Year Limited Warranty*
OEM Part Numbers:
F2HZ8005D, F0HT8005LB, 1A16282, 1A16285, 1A16852, F0HT8005B, F0HT8005D, F0HT8005EA, F0HT8005FB, F0HT8005FC, F0HT8005LA, F0HT8005NA, F0HT8005TA, F1HT8005EA, F3HT8005JA, F0HZ8005D, F0HZ8005G, F2HT8005NA, F2HT8005TA, F3HT8005EB, F3HT8005JB, F3HZ8005B, F3HZ8005F, F3HZ8005X, F6HT8005AA, 437101, FOR62, 20021502, 3S43707, FB93, 5600-02AST, 5600-02ST, 437101S
Notes:
**Verify brackets against OEM radiator**
**Pin Mounts on this radiator enter from the side of the tanks.
**For pin mounts entering from front to rear, see part no: SC-239493
