Details

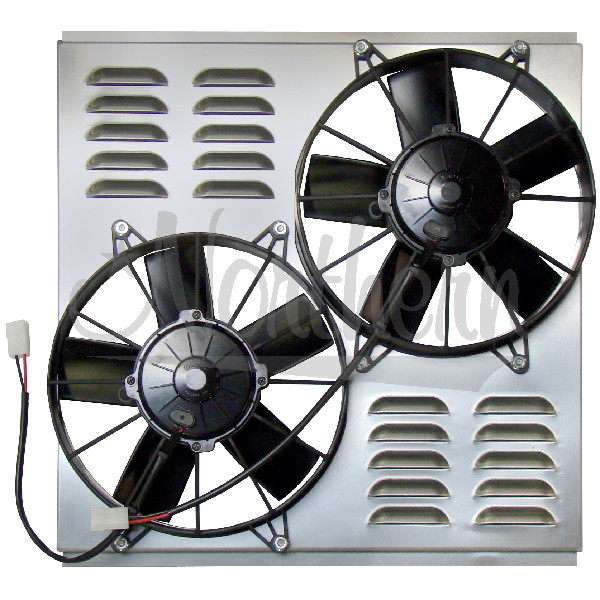

Dual High CFM 10" Electric Fan & Shroud
Fits: Radiators 209633, 209634, 209678, 209679, 209642B, 204102BC, 205053, 205054, 205151
Rated for applications with greater than 390 HP
Number of Fans: 2
Height: 19"
Width: 18 3/8"
Depth: 4 1/4"
Fan Size: 10"
Total Amp Draw: 22.6
Total CFM: 2230
12 Month Warranty*
Fits: Radiators 209633, 209634, 209678, 209679, 209642B, 204102BC, 205053, 205054, 205151
Rated for applications with greater than 390 HP
Number of Fans: 2
Height: 19"
Width: 18 3/8"
Depth: 4 1/4"
Fan Size: 10"
Total Amp Draw: 22.6
Total CFM: 2230
12 Month Warranty*
Notes:
Wiring harness not included. Please see:
• Z40079 Pigtail Connector (1 per fan, only required if not using Northern relay harness)
• Z41030 Relay Harness for High Amp Fans
• Z41032 Relay Harness with Temp Switch for High Amp Fans
• Z18350 PWM Fan Control Kit
All wiring harnesses and PWM sold separately
