Details
Chevy / GMC Truck Radiator
Fits: C Series Kodiak, TopKick and School Bus Chassis
**CONTRUCTION MAY VARY**
All Aluminum or Plastic Tanks w/ Aluminum Core
WITH Engine & Transmission Oil Coolers
WITH Fill Neck & Low Coolant Indicator Port
CORE HEIGHT: 31 3/8"
CORE WIDTH: 23 1/4"
DEPTH: 1 1/4"
INLET: 2" - Upper Left, 2 1/8" In
OUTLET: 2" - Lower Right, 2" In

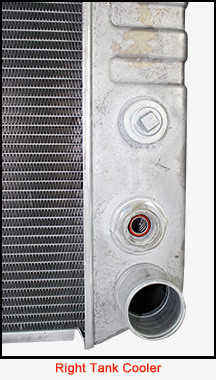

TOC (Passenger Side): 6 PLT, 18" CTRS - 1 1/16" Fittings

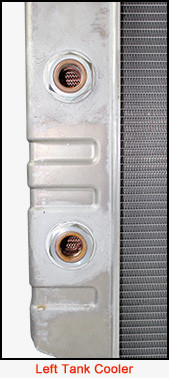

EOC (Driver Side): 6 PLT, 7 1/4" CTRS - 3/4" Fittings
2-Year Limited Warranty*
Fits: C Series Kodiak, TopKick and School Bus Chassis
**CONTRUCTION MAY VARY**
All Aluminum or Plastic Tanks w/ Aluminum Core
WITH Engine & Transmission Oil Coolers
WITH Fill Neck & Low Coolant Indicator Port
CORE HEIGHT: 31 3/8"
CORE WIDTH: 23 1/4"
DEPTH: 1 1/4"
INLET: 2" - Upper Left, 2 1/8" In
OUTLET: 2" - Lower Right, 2" In
TOC (Passenger Side): 6 PLT, 18" CTRS - 1 1/16" Fittings
EOC (Driver Side): 6 PLT, 7 1/4" CTRS - 3/4" Fittings
2-Year Limited Warranty*
OEM Part Numbers:
20859, 5241180, 52458204, 52460930, 52471178, 52471180, 1R2975, RA1113, 52477166, TR2108, GMC11, GMC16, GMC19, GMC25, GMC26, CR2108, 580011ST, CU2108, SRM2975, CR2108, SRM2975, 437369S, 437369, CVTU60373, CAVTU60373, CAVTU61303, 5800-11ST, 437369P
Notes:

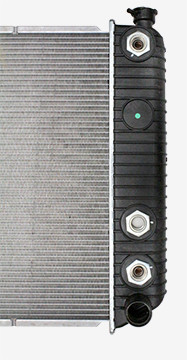

**Includes a 3/4" NPT Sensor Port on Outlet Tank (See Alternate Image above).
If Oil Cooler Adapters are needed, see part # RW8046 and RW8047 (Both are sold as a set of 2 adapters)
Best Quality & Price - Satisfaction Guarantee
At Superior, we build and supply only the highest quality radiators with heavy duty components for superior quality, maximum heat rejection and long life durability.
We want your business and will go the distance to prove that our radiators and service are superior to others in the industry.
Please call us at 1-800-578-8416 and we will do our best to beat or match another price or quote you find.
Or, fill out the form below and we will contact you.
