Details
Chevy / GMC Truck Radiator - Fits: Kodiak & TopKick
Years: 1990 to 1997
OE Style Radiator with Plastic Tanks / Aluminum Core
WITH Engine & Transmission Oil Coolers
WITH Heater Return Line for 3/4" Hose
WITH Sensor Port
CORE HEIGHT: 31 3/8"
CORE WIDTH: 25 1/2"
DEPTH: 1 3/8"
INLET: 2" - Upper Left - 2 1/8" In
OUTLET: 2 1/4" - Lower Right - 3 1/8" In
DRIVER SIDE COOLER: 7" Cntrs (3/4" Fittings)
PASSENGER SIDE COOLER: 18" Cntrs (3/4" Fittings)
2-Year Limited Warranty*
Years: 1990 to 1997
OE Style Radiator with Plastic Tanks / Aluminum Core
WITH Engine & Transmission Oil Coolers
WITH Heater Return Line for 3/4" Hose
WITH Sensor Port
CORE HEIGHT: 31 3/8"
CORE WIDTH: 25 1/2"
DEPTH: 1 3/8"
INLET: 2" - Upper Left - 2 1/8" In
OUTLET: 2 1/4" - Lower Right - 3 1/8" In
DRIVER SIDE COOLER: 7" Cntrs (3/4" Fittings)
PASSENGER SIDE COOLER: 18" Cntrs (3/4" Fittings)
2-Year Limited Warranty*
OEM Part Numbers:
2717B, 3096049, 52457248, 20504, 20528, 20532, 3096058, 52451040, 52458081, 52469619, RA1043, 1R2658, GMC6222, CAVTU62223, 3096323, GMC03, FLX000807, GMC21, GMC7584, TR9322, FLX00807, SRM1234, 551234, TR9322, S5803, 580003, 580003PT, 580003ST, 437191P
Notes:

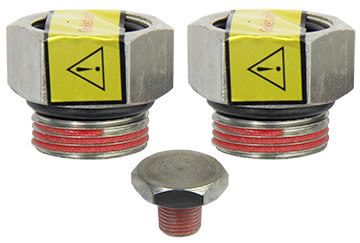

Includes oil cooler adapters 3/4-14 NPSF to 1 1/16-16 UNF. See alternate photo above.
Some applications may require the installer to add a hole to the shroud to accept the extra sensor port on the passenger tank.
