Details
Chevy / GM Truck Radiator
Fits: Kodiak & Topkick Series
Years: 1990-1998
High Quality OE Style Radiator
with Plastic Tanks / Aluminum Core
CORE HEIGHT: 35 1/4"
CORE WIDTH: 25 1/2"
DEPTH: 1 3/8"
INLET: 2" - Upper Left - 2 1/8" In
OUTLET: 2 1/4" - Lower Right - 3 1/8" In
OIL COOLER: 6 PLT - 18" Cntrs - 3/4" NPSF Fittings
Includes Adapters to 1 1/16" - UNF
2-Year Limited Warranty*
Fits: Kodiak & Topkick Series
Years: 1990-1998
High Quality OE Style Radiator
with Plastic Tanks / Aluminum Core
CORE HEIGHT: 35 1/4"
CORE WIDTH: 25 1/2"
DEPTH: 1 3/8"
INLET: 2" - Upper Left - 2 1/8" In
OUTLET: 2 1/4" - Lower Right - 3 1/8" In
OIL COOLER: 6 PLT - 18" Cntrs - 3/4" NPSF Fittings
Includes Adapters to 1 1/16" - UNF
2-Year Limited Warranty*
OEM Part Numbers:
20815, 52469621, 52465437, 20771, 52457549, 1R2679, RA1046, RA1090, 89018628, 93801966, GMC7346, 21602, GMC04, 1R2972, GMC20, FLX000815, 5800-04ST, 437346P
Notes:

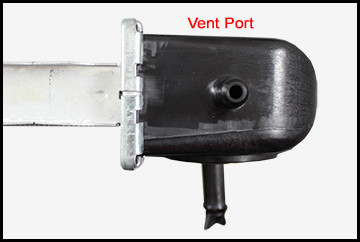

Capped heater return port has removable O-Ring Seal.
Oil Cooler adapters included.
***Verify Core Dimensions - Header to Header is 35 1/4" (896mm) for this radiator***
For Radiator with 35 7/8" Header to Header, see part no: SC-231811
