Chevy / GM Radiator - Fits: Kodiak & Topkick

Submit a Review for this product

$689.17

Availability: In stock

Quick Overview

Superior Part No: SC-239023
Chevy / GM Radiator - Fits: Kodiak & Topkick
Zoom or Click to Enlarge

More Views

  • Chevy / GM Radiator - Fits: Kodiak, 7000 Series & Other Models
  • Chevy / GM Radiator - Fits: Kodiak, 7000 Series & Other Models
  • Chevy / GM Radiator - Fits: Kodiak, 7000 Series & Other Models
  • Chevy / GM Radiator - Fits: Kodiak, 7000 Series & Other Models
  • Chevy / GM Radiator - Fits: Kodiak, 7000 Series & Other Models
  • Components - 239023

Details

Chevy / GM Truck Radiator - Fits Models:
Chevrolet Kodiak, GMC Topkick Series
with 7.2L, 7.8L & 8.1L Engines
Years: 2003 - 2007

High Quality OE Style Radiator
with Plastic Tanks / Aluminum Core
WITH 2 Oil Coolers - on Inlet & Outlet Tanks

CORE HEIGHT: 37 1/8"
CORE WIDTH: 19 1/8"
DEPTH: 2"
INLET: 1 3/4" - Upper Left - 1 1/2" In
OUTLET: 1 3/4" - Lower Right - 2 9/16" In
OIL COOLER 1: Quick Connect on 11 1/2" Centers
OIL COOLER 2: Quick Connect on 11 1/2" Centers

2-Year Limited Warranty*
Superior Radiators - Truck Tough Radiator

OEM Part Numbers:
150113551, 19130050, 1579463, 15258917, 15258918, 580034, 21694, 21577, 21693, 15170904, 15797463, GMC7274, M2947001, S6705001, GMC33, CTAVT83634, 1003639, 1003639AS, 1003639AN, 1003636AS, 15013546, 19130049, 15797461, B1449, 12082101, 15797462, HDC010272, 580034PT, S5833, 437274, 437274P, 580033, 5800-33PT

Notes:
Has a 5/8" bypass connection. Does not have a fill neck.

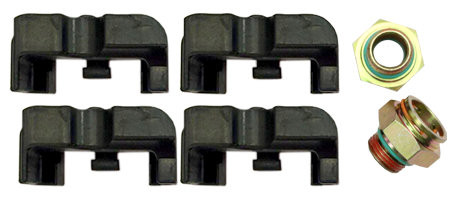

See alternate photo above for included components.

For similar radiator, but with only one oil cooler, see part no: SC-238782
