Details

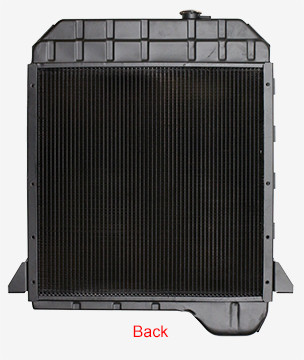

CAT Stationary Engine Radiator
See OEM Part Numbers for direct match.
Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
OVERALL HEIGHT: 31"
OVERALL WIDTH: 23 5/8" (Over Side Channels)
CORE HEIGHT: 22"
CORE WIDTH: 22 1/8"
DEPTH: 3 3/4"
ROWS: 5
FINS PER INCH: 7
FILL NECK : 1 5/8" X 3/4 Deep
INLET: 2" - (10" in from Top Left)
OUTLET: 2 1/8" - Lower Left
2-Year Limited Warranty*
See OEM Part Numbers for direct match.
Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
OVERALL HEIGHT: 31"
OVERALL WIDTH: 23 5/8" (Over Side Channels)
CORE HEIGHT: 22"
CORE WIDTH: 22 1/8"
DEPTH: 3 3/4"
ROWS: 5
FINS PER INCH: 7
FILL NECK : 1 5/8" X 3/4 Deep
INLET: 2" - (10" in from Top Left)
OUTLET: 2 1/8" - Lower Left
2-Year Limited Warranty*
OEM Part Numbers:
7E4639, 7E7764P3877, MNY20229401A, R4639P, MNY20222200C, 4P3379P, R3379P
Best Quality & Price - Satisfaction Guarantee
At Superior, we build and supply only the highest quality radiators with heavy duty components for superior quality, maximum heat rejection and long life durability.
We want your business and will go the distance to prove that our radiators and service are superior to others in the industry.
Please call us at 1-800-578-8416 and we will do our best to beat or match another price or quote you find.
Or, fill out the form below and we will contact you.
