Muscle Car Radiator - All Aluminum
Fits: Camaro, Firebird & Trans Am
with Automatic Transmission
Years: 1967 - 1969
Machined Billet Aluminum
SAE Compliant Filler Neck
OVERALL LENGTH: 25 7/8"
(27 5/8" Center to Center of Bracket Holes)
OVERALL WIDTH: 18 7/8"
OVERALL DEPTH: 3 1/4"
CORE LENGTH: 22"
CORED WIDTH: 17 3/8"
CORE DEPTH: 2 1/4"
INLET: 1 1/2"
OUTLET: 1 3/4"
TRANS OIL COOLER: 5/16" - Inverted Flare
12-Month Warranty*
Fits: Camaro, Firebird & Trans Am
with Automatic Transmission
Years: 1967 - 1969
Machined Billet Aluminum
SAE Compliant Filler Neck
OVERALL LENGTH: 25 7/8"
(27 5/8" Center to Center of Bracket Holes)
OVERALL WIDTH: 18 7/8"
OVERALL DEPTH: 3 1/4"
CORE LENGTH: 22"
CORED WIDTH: 17 3/8"
CORE DEPTH: 2 1/4"
INLET: 1 1/2"
OUTLET: 1 3/4"
TRANS OIL COOLER: 5/16" - Inverted Flare
12-Month Warranty*
Notes:
Recommended Electric Fan Shroud - see part nos: Z40013, Z40086
Recommended Brushless Fan Shroud - see part no: Z40138
Recommended Hurricane Engine Driven Fan Shroud - see part no: Z40030
For Manual Transmission, use part no: 205125
Use Z50720 Shroud Clip Bracket Kit (Allows for use of OE shroud)

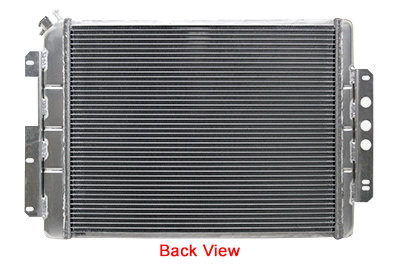

See alternate photo above for better view of brackets
