Details

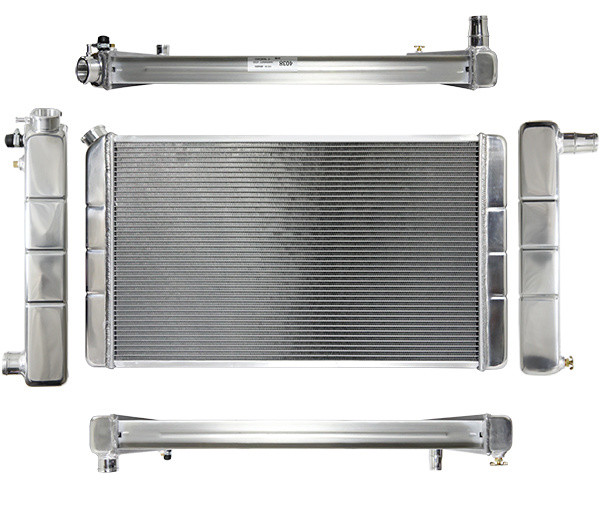

Muscle Car Radiator - All Aluminum
Fits: 1966-1985 GM Cars
1973-1994 GM HD Trucks
Machined Billet Aluminum
SAE Compliant Filler Neck
OVERALL LENGTH: 33"
OVERALL WIDTH: 18 3/8"
OVERALL DEPTH: 3 1/8"
CORE HEIGHT: 28 1/4"
CORE WIDTH: 17 1/8"
DEPTH: 2 1/4"
ROWS: 2 with 1" Tubes
INLET: Dual Neck - 1 5/16" & 1 1/2"
OUTLET: 1 1/2"
SENSOR PORT: 1/8" NPT
HEATER RETURN LINE: 5/8" - Capped
12-Month Warranty*
Fits: 1966-1985 GM Cars
1973-1994 GM HD Trucks
Machined Billet Aluminum
SAE Compliant Filler Neck
OVERALL LENGTH: 33"
OVERALL WIDTH: 18 3/8"
OVERALL DEPTH: 3 1/8"
CORE HEIGHT: 28 1/4"
CORE WIDTH: 17 1/8"
DEPTH: 2 1/4"
ROWS: 2 with 1" Tubes
INLET: Dual Neck - 1 5/16" & 1 1/2"
OUTLET: 1 1/2"
SENSOR PORT: 1/8" NPT
HEATER RETURN LINE: 5/8" - Capped
12-Month Warranty*
Notes:
Recommended Standard Electric Fan Shroud - see part nos: Z40004
Recommended High CFM Electric Fan Shroud - see part no: Z40099
Recommended Brushless Fan Shroud - see part no: Z40132
Recommended Hurricane Engine Driven Fan Shroud - see part no: Z40026
For Automatic Transmission, see part no: 205026
