Details

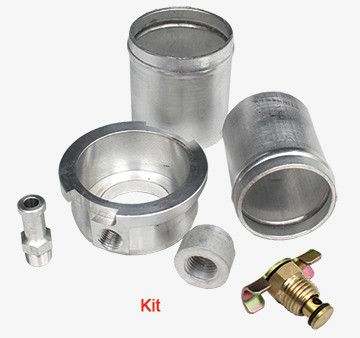

KIT INCLUDES:
(1) 31 x 16 BLANK 3 ROW RADIATOR
(1) 1 1/2" HOSE CONNECTION
(1) 1 3/4" HOSE CONNECTION
(1) BILLET ALUMINUM FILLER NECK
(1) OVERFLOW TUBE
(1) WELD-ON BUNG
(1) DRAINCOCK
OVERALL LENGTH: 30 7/8"
OVERALL WIDTH: 16 3/8"
OVERALL DEPTH: 4 1/4"
CORE HEIGHT: 26 1/4"
CORE WIDTH: 14 7/8"
DEPTH: 3 3/8"
ROWS: 3 - 1" Tubes
(1) 31 x 16 BLANK 3 ROW RADIATOR
(1) 1 1/2" HOSE CONNECTION
(1) 1 3/4" HOSE CONNECTION
(1) BILLET ALUMINUM FILLER NECK
(1) OVERFLOW TUBE
(1) WELD-ON BUNG
(1) DRAINCOCK
OVERALL LENGTH: 30 7/8"
OVERALL WIDTH: 16 3/8"
OVERALL DEPTH: 4 1/4"
CORE HEIGHT: 26 1/4"
CORE WIDTH: 14 7/8"
DEPTH: 3 3/8"
ROWS: 3 - 1" Tubes
• 30% more cooling capacity than any brand of 2 row 1" tube radiator!
• Machined billet aluminum SAE compliant filler neck

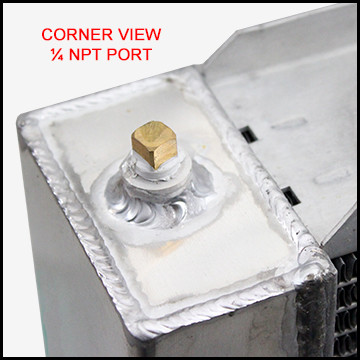

• This radiator has a 1/4" plugged NPT port - see alternate image
• Must use high cfm fan if installing electric fan
• This kit requires aluminum welding and fabrication. Use of R4043 Tig welding rod recommended
• Please see pdf below for detailed measurements
• Kit is sold as an unfinished product. Standard Northern warranties do not apply
Best Quality & Price - Satisfaction Guarantee
At Superior, we build and supply only the highest quality radiators with heavy duty components for superior quality, maximum heat rejection and long life durability.
We want your business and will go the distance to prove that our radiators and service are superior to others in the industry.
Please call us at 1-800-578-8416 and we will do our best to beat or match another price or quote you find.
Or, fill out the form below and we will contact you.
