Details

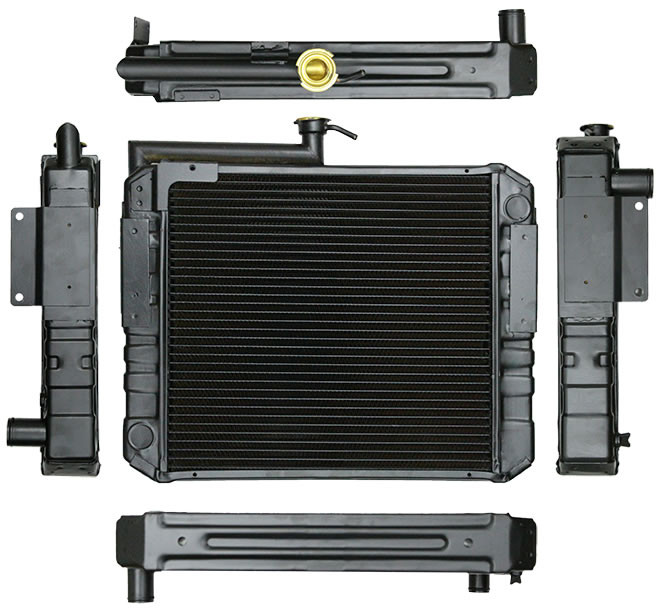

Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
OVERALL HEIGHT: 22 7/8"
OVERALL WIDTH: 17 1/2"
CORE HEIGHT: 17 5/8"
CORE WIDTH: 17"
DEPTH: 2 3/8"
ROWS: 4
FINS PER INCH: 8 - V Fin (Serpentine)
INLET: 1 1/2"
OUTLET: 1 1/2"
FILL NECK: 1 5/8 I.D. x 3/4" Deep
OIL COOLER: 3/8" NPT on 8" Centers
OEM Part Numbers: 1344065, 1344080
12-Month Warranty*
with Brass Tanks / Copper Core
OVERALL HEIGHT: 22 7/8"
OVERALL WIDTH: 17 1/2"
CORE HEIGHT: 17 5/8"
CORE WIDTH: 17"
DEPTH: 2 3/8"
ROWS: 4
FINS PER INCH: 8 - V Fin (Serpentine)
INLET: 1 1/2"
OUTLET: 1 1/2"
FILL NECK: 1 5/8 I.D. x 3/4" Deep
OIL COOLER: 3/8" NPT on 8" Centers
OEM Part Numbers: 1344065, 1344080
12-Month Warranty*
Notes:
WITH Oil Cooler on 8" Centers
Serpentine Core Design (V Fin)
Better for clean environments. (Indoors)
Supersedes part no: SC-246088
Click Here for description of different style cores.
Best Quality & Price - Satisfaction Guarantee
At Superior, we build and supply only the highest quality radiators with heavy duty components for superior quality, maximum heat rejection and long life durability.
We want your business and will go the distance to prove that our radiators and service are superior to others in the industry.
Please call us at 1-800-578-8416 and we will do our best to beat or match another price or quote you find.
Or, fill out the form below and we will contact you.
