Details
Peterbilt Truck Radiator - Fits Models:
357 :: Years: 2003 - 2006
385 :: Years: 2003 - 2007
Heavy Duty All Metal Radiator
with Bolted-on Steel Tanks / Copper Core
CORE HEIGHT: 36 1/4"
CORE WIDTH: 34 1/4"
DEPTH: 1 9/16"
ROWS: 3
INLET: 2 1/2" - Upper Left - 9 3/8" In
OUTLET: 3" - Bottom Left
OIL COOLER: No
2-Year Limited Warranty*
357 :: Years: 2003 - 2006
385 :: Years: 2003 - 2007
Heavy Duty All Metal Radiator
with Bolted-on Steel Tanks / Copper Core
CORE HEIGHT: 36 1/4"
CORE WIDTH: 34 1/4"
DEPTH: 1 9/16"
ROWS: 3
INLET: 2 1/2" - Upper Left - 9 3/8" In
OUTLET: 3" - Bottom Left
OIL COOLER: No
2-Year Limited Warranty*
OEM Part Numbers: 0706657A047, 1A19461, P3LPD, HDC010832, S7732, 770032, 770032BT
Notes:

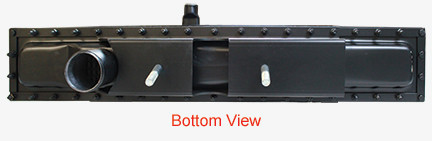

***Bottom bracket has 2 stud mount holes centered in the bracket. See alternate image above.
For similar radiator but with outlet on the right side, see part no: SC-239075
*Ships by Freight Truck only*
