Details
Fits Models: 42 5FDCU202J, 42 5FDCU252J, 42 5FDCU302J, 42 5FGCU184Y, 42 5FGCU204Y, 42 5FGCU254Y, 42 5FGCU304Y, 42 5FGU204Y, 42 5FGU254Y, 5FG25, 5FGC25

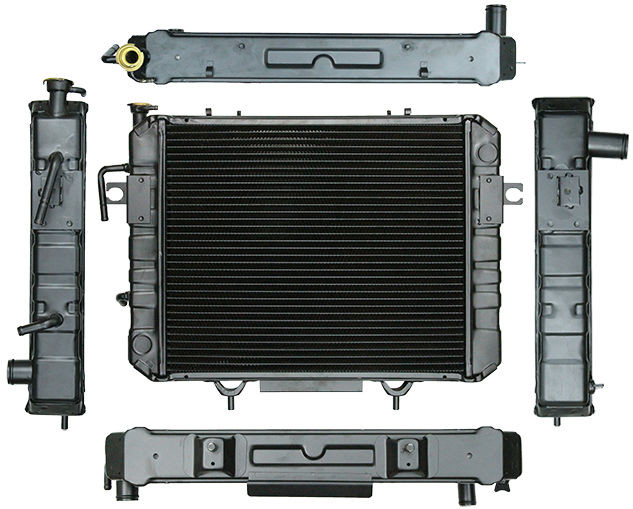

Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
WITH Oil Cooler on 8 1/2" Centers
7 Fins Per Inch (For 12 fins per inch, use SC-246061)
OVERALL HEIGHT: 24 3/4" (28 1/8" w/ Brackets)
OVERALL WIDTH: 20 1/8" (includes mount studs)
CORE HEIGHT: 19 5/8"
CORE WIDTH: 17"
DEPTH: 2 3/8"
ROWS: 4
INLET: 1 3/8"
OUTLET: 1 3/8"
FINS PER INCH: 7 - V Fin
FILL NECK: 32mm
OIL COOLER: 1/2" Barb on 8 1/2" Centers
MOUNTING PINS: Upper - 10 1/4" Ctrs, Lower - 11 Ctrs
RADIATOR CAP: Use RW0021-6
12-Month Warranty*
Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
WITH Oil Cooler on 8 1/2" Centers
7 Fins Per Inch (For 12 fins per inch, use SC-246061)
OVERALL HEIGHT: 24 3/4" (28 1/8" w/ Brackets)
OVERALL WIDTH: 20 1/8" (includes mount studs)
CORE HEIGHT: 19 5/8"
CORE WIDTH: 17"
DEPTH: 2 3/8"
ROWS: 4
INLET: 1 3/8"
OUTLET: 1 3/8"
FINS PER INCH: 7 - V Fin
FILL NECK: 32mm
OIL COOLER: 1/2" Barb on 8 1/2" Centers
MOUNTING PINS: Upper - 10 1/4" Ctrs, Lower - 11 Ctrs
RADIATOR CAP: Use RW0021-6
12-Month Warranty*
OEM Part Numbers: 16410U200071B, 16410U200071
Notes:
Click Here for description of different style cores.
