Details
Fits: Allis Chalmers forklifts
Komatsu 7-10,000 lb lifts, FG45T-7

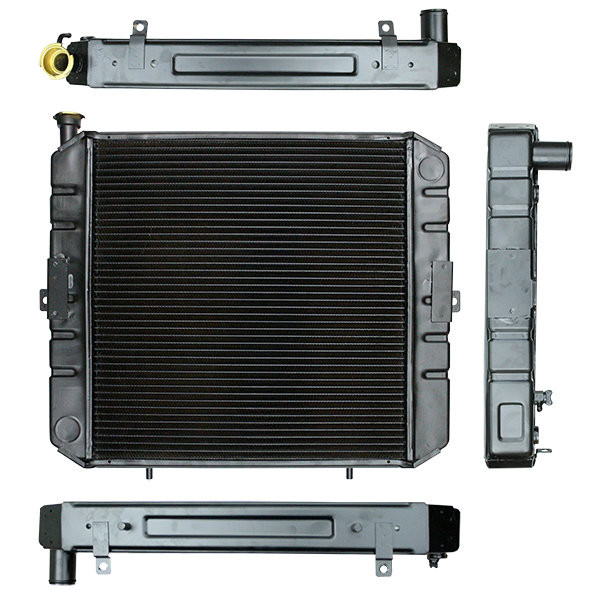

Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
OVERALL HEIGHT: 27" (29 5/8" w/ brackets)
OVERALL WIDTH: 22 1/4" (23 1/4" w/ mounts)
CORE HEIGHT: 20 3/4"
CORE WIDTH: 21 5/8"
DEPTH: 2 3/8"
INLET: 1 3/4"
OUTLET: 1 3/4"
FINS PER INCH: 10 - V Fin
FILL NECK: 1 5/8 I.D. x 3/4" Deep
OIL COOLER: Has 2 Coolers - 1/2" NPT on 15" Cntrs
MOUNTING PINS: 13 3/4" Centers
RADIATOR CAP: Use RW0021-2
OEM Part Numbers: 3EC04A5310, 8764958
12-Month Warranty*
Komatsu 7-10,000 lb lifts, FG45T-7
Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
OVERALL HEIGHT: 27" (29 5/8" w/ brackets)
OVERALL WIDTH: 22 1/4" (23 1/4" w/ mounts)
CORE HEIGHT: 20 3/4"
CORE WIDTH: 21 5/8"
DEPTH: 2 3/8"
INLET: 1 3/4"
OUTLET: 1 3/4"
FINS PER INCH: 10 - V Fin
FILL NECK: 1 5/8 I.D. x 3/4" Deep
OIL COOLER: Has 2 Coolers - 1/2" NPT on 15" Cntrs
MOUNTING PINS: 13 3/4" Centers
RADIATOR CAP: Use RW0021-2
OEM Part Numbers: 3EC04A5310, 8764958
12-Month Warranty*
Notes:
Click Here for description of different style cores.
