Details

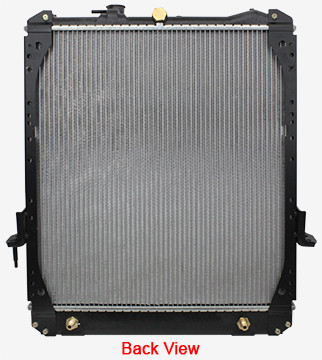

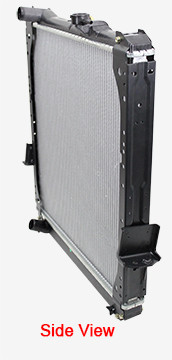

GM / Isuzu Truck Radiator
Fits: NPR, NQR, Crew Cab, NRR & GM W-Series
Years: 1999 to 2003
High Quality OE Style Radiator
with Plastic Tanks / Aluminum Core
Includes Frame Brackets as shown in photo
Has sensor port (M18-1.5MM) on grill side on top tank
Has 1/2" NPT to the left of fill neck.
CORE HEIGHT: 23 1/8"
CORE WIDTH: 21 5/8"
DEPTH: 1 1/4"
ROWS: 3
INLET: 1 1/2" - Upper Left
OUTLET: 1 1/2" - Lower Left
OIL COOLER: Grill Side - Male Fittings - 14 3/8" Centers
12-Month Warranty*
Fits: NPR, NQR, Crew Cab, NRR & GM W-Series
Years: 1999 to 2003
High Quality OE Style Radiator
with Plastic Tanks / Aluminum Core
Includes Frame Brackets as shown in photo
Has sensor port (M18-1.5MM) on grill side on top tank
Has 1/2" NPT to the left of fill neck.
CORE HEIGHT: 23 1/8"
CORE WIDTH: 21 5/8"
DEPTH: 1 1/4"
ROWS: 3
INLET: 1 1/2" - Upper Left
OUTLET: 1 1/2" - Lower Left
OIL COOLER: Grill Side - Male Fittings - 14 3/8" Centers
12-Month Warranty*
OEM Part Numbers:
8972219732, 5874107841, 8972126641, 8972136011, 8972219720, 8972219730, 8972219731, 8972136641, 8977300880, 8973543490, 5874107840, 081129001, 8973543621, 8973543650, 97221973, 97213664, 87410783, 97330088, 5874107830, 8973543622, 29406B0050, 8973543651, 29406B0220, 29406B0230, ISU16, TR9307, ISU27, CR9307, SRK7417, 3216, ISU06, ISU10, 3206, CR9264, 87410784, IZ8161, ISU27, FLX000803, 4100-07PTC, 437363S, 20010701
