Details
Fits: Ford Stationary Engine - Wood Chipper

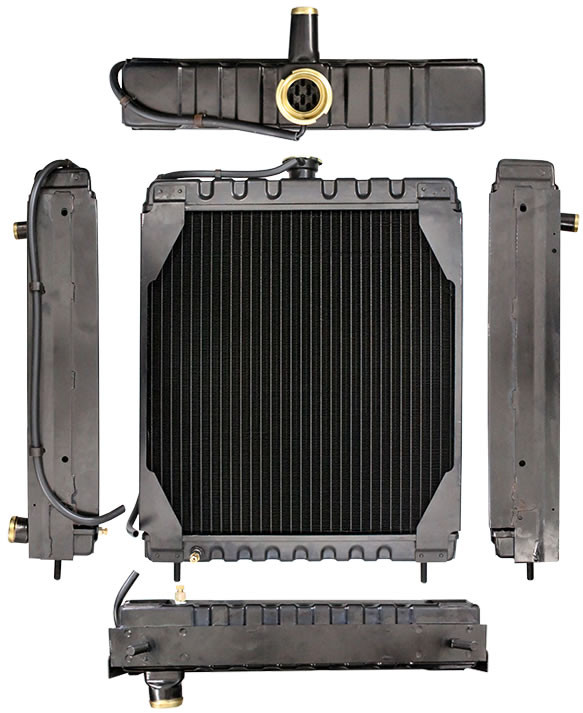

Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
OVERALL HEIGHT: 24 1/8" (26" w/ Mounting Studs)
OVERALL WIDTH: 20 1/2"
CORE HEIGHT: 20"
CORE WIDTH: 19 1/2"
DEPTH: 3 1/8"
ROWS: 6
FINS PER INCH: 10
FILL NECK: 2 1/8" I.D. x 3/4" Deep - 1 5/8" Tall
INLET: 1 1/2"
OUTLET: 1 3/4"
OIL COOLER: No
MOUNTING POINTS: 16 1/4" Centers
RADIATOR CAP: Use RW0021-4
OEM Part Numbers: D8JL8005D, 1961E
12-Month Warranty*
Heavy Duty All Metal Radiator
with Brass Tanks / Copper Core
OVERALL HEIGHT: 24 1/8" (26" w/ Mounting Studs)
OVERALL WIDTH: 20 1/2"
CORE HEIGHT: 20"
CORE WIDTH: 19 1/2"
DEPTH: 3 1/8"
ROWS: 6
FINS PER INCH: 10
FILL NECK: 2 1/8" I.D. x 3/4" Deep - 1 5/8" Tall
INLET: 1 1/2"
OUTLET: 1 3/4"
OIL COOLER: No
MOUNTING POINTS: 16 1/4" Centers
RADIATOR CAP: Use RW0021-4
OEM Part Numbers: D8JL8005D, 1961E
12-Month Warranty*
Notes:
Draincock Port: 1/4" NPT
7/16" Mounting Studs on 16 1/4" Centers (See Alternate Images)
Suggested: Rubber Mount Pad - part no: RW0178-43
Great for positioning mounting studs to prevent rubbing and stress cracks.
